LC-10 DC-DC CONVERTER

www.DataSheet4U.com DC-DC CONVERTER (PIN) LC-10 OUTLINE / 1. This is small size and high efficient up-down converter transformer which is 2 in 1 construction. (ex. SEPIC converter) 2. It is possible to output the high voltage which is hard to obtain with an ordinary inductor with sufficient accuracy. 3. It is available for a white LED back light drive. 1. 2in１SEPIC, ZETA。 2.、 。 3. LED。 DIMENSIONS (mm) LC-10 ø11.0MAX. CONSTRUCTION 5.0MAX. 2.0 ø0.5 36˚ Specifications Max. Operating freq.

LC-10 Datasheet (234.78 KB)

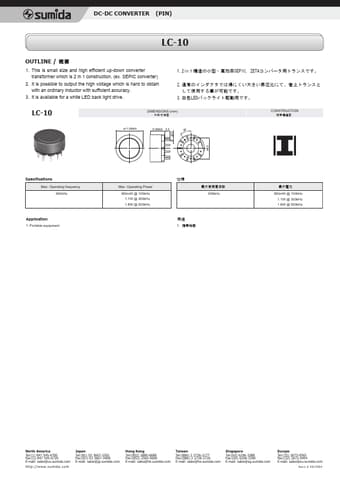

Preview of LC-10 PDF

Datasheet Details

Part number:

LC-10

Manufacturer:

Sumida Corporation

File Size:

234.78 KB

Description:

Dc-dc converter.
