LC-155Bxxxxxx - SFF LC Duplex Optical Transceiver Module

Product Overview

Delta Electronics

📥 Download Datasheet

LC-155Bxxxxxx SFF LC Duplex Optical Transceiver Module by Delta Electronics - Datasheet Preview — Datasheet preview – LC-155Bxxxxxx

Datasheet Details

Part number	LC-155Bxxxxxx
Manufacturer	Delta Electronics
File Size	195.67 KB
Description	SFF LC Duplex Optical Transceiver Module
Datasheet	LC-155Bxxxxxx Datasheet

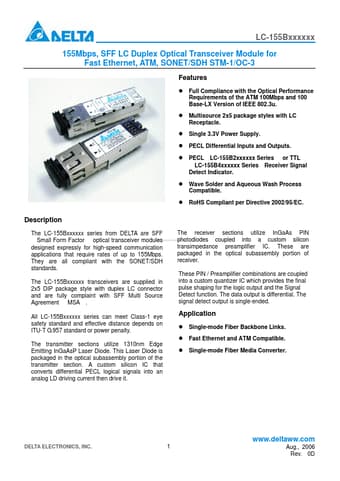

Additional preview pages of the LC-155Bxxxxxx datasheet.

Product details

Description

The receiver sections utilize InGaAs PIN The LC-155Bxxxxxx series from DELTA are SFF www.DataSheet4U.com photodiodes coupled into a custom silicon Small Form Factor optical transceiver modules transimpedance preamplifier IC.

Features

Full Compliance with the Optical Performance Requirements of the ATM 100Mbps and 100 Base-LX Version of IEEE 802.3u. Multisource 2x5 package styles with LC Receptacle. Single 3.3V Power Supply. PECL Differential Inputs and Outputs. PECL LC-155B2xxxxxx Series or TTL LC-155B4xxxxxx Series Receiver Signal Detect Indicator. Wave Solder and Aqueous Wash Process Compatible. RoHS Compliant per Directive 2002/95/EC.
