LF9203, LF9202 Datasheet - Delta Electronics

LF9203 100/1000BASE-T TRANSFORMER MODULES

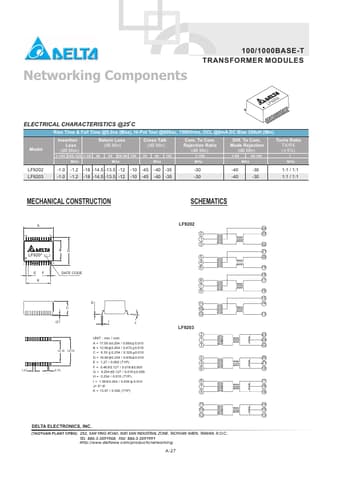

100/1000BASE-T TRANSFORMER MODULES Networking Components LF 92 02 ELECTRICAL CHARACTERISTICS @25 C Rise Time & Fall Time @5.0ns (Max), Hi-Pot Test @60Sec, 1500Vrms, OCL @8mA DC Bias 350uH (Min) Model Insertion Loss (dB Max) 1-100 100-125 1-30 MHz o Return Loss (dB Min) 40 50 60-80 100 MHz Cross Talk (dB Min) 30 60 MHz 100 Com. To Com. Rejection Ratio (dB Min) 1-100 MHz Diff. To Com. Mode Rejection (dB Min) 1-60 MHz 60-100 Turns Ratio TX/RX ( 5%) 1 MHz LF9202 LF9203 -1.0 -1.0 -1.2 -1.2.

LF9202-DeltaElectronics.pdf

This datasheet PDF includes multiple part numbers: LF9203, LF9202. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LF9203, LF9202

Manufacturer:

Delta Electronics

File Size:

127.03 KB

Description:

100/1000base-t transformer modules.

Note:

This datasheet PDF includes multiple part numbers: LF9203, LF9202.
Please refer to the document for exact specifications by model.
