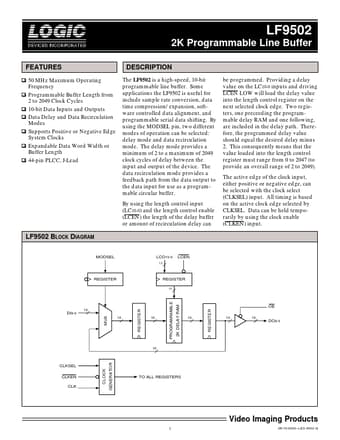

LF9502 2K Programmable Line Buffer

The LF9502 is a high-speed, 10-bit programmable line buffer. Some applications the LF9502 is useful for include sample rate conversion, data time compression/expansion, software controlled data alignment, and programmable serial data shifting. By using the MODSEL pin, two different modes of operatio.

LF9502 Features

* u 50 MHz Maximum Operating Frequency u Programmable Buffer Length from 2 to 2049 Clock Cycles u 10-bit Data Inputs and Outputs u Data Delay and Data Recirculation Modes u Supports Positive or Negative Edge System Clocks u Expandable Data Word Width or Buffer Length u 44-pin PLCC, J-Lead LF9502 BLOC
