LF9501 Programmable Line Buffer

📥 Download Datasheet  Datasheet Preview Page 1

Description

LF9501 DEVICES INCORPORATED Programmable Line Buffer LF9501 DEVICES INCORPORATED Programmable Line Buffer .
The LF9501 is a high-speed, 10-bit programmable line buffer.

📥 Download Datasheet

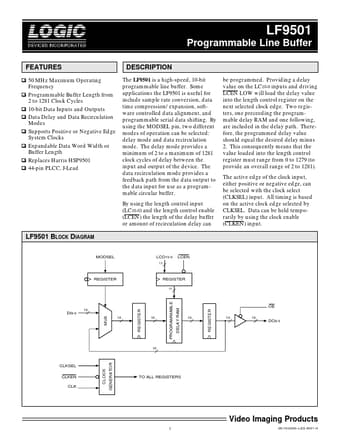

Preview of LF9501 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LF9501
Manufacturer
LOGIC Devices Incorporated
File Size
52.33 KB
Datasheet
LF9501_LOGICDevicesIncorporated.pdf
Description
Programmable Line Buffer

Features

* u 50 MHz Maximum Operating Frequency u Programmable Buffer Length from 2 to 1281 Clock Cycles u 10-bit Data Inputs and Outputs u Data Delay and Data Recirculation Modes u Supports Positive or Negative Edge System Clocks u Expandable Data Word Width or Buffer Length u Replaces Harris HSP9501 u 44-pin

Applications

* the LF9501 is useful for include sample rate conversion, data time compression/expansion, software controlled data alignment, and programmable serial data shifting. By using the MODSEL pin, two different modes of operation can be selected: delay mode and data recirculation mode. The delay mode provi
