NE12S0A0H06, NE12S0A0V06 Datasheet - Delta Electronics

NE12S0A0H06, NE12S0A0V06, DC/DC Power Modul

.
Enable (On/Off) The ENABLE (on/off) input allows external circuitry to put the NE converter into a low power dissipation (sleep) mode.

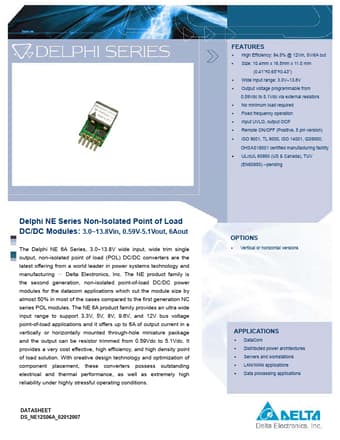

datasheet Preview Page 1 from Datasheet4u.com

NE12S0A0V06_DeltaElectronics.pdf

NE12S0A0H06 Datasheet Preview — This datasheet PDF includes multiple part numbers: NE12S0A0H06, NE12S0A0V06. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NE12S0A0H06, NE12S0A0V06

Manufacturer:

Delta Electronics

File Size:

554.82 KB

Description:

DC/DC Power Modul

Note:

This datasheet PDF includes multiple part numbers: NE12S0A0H06, NE12S0A0V06.
Please refer to the document for exact specifications by model.

Features

* High Efficiency: 94.5% @ 12Vin, 5V/6A out Size: 10.4mm x 16.5mm x 11.0 mm (0.41”×0.65”×0.43”) Wide input range: 3.0V~13.8V Output voltage programmable from 0.59Vdc to 5.1Vdc via external resistors No minimum load required Fixed frequency operation Input UVLO, output OCP Remote ON/OFF (Positive, 5 pi

Applications

* which cut the module size by almost 50% in most of the cases compared to the first generation NC series POL modules. The NE 6A product family provides an ultra wide input range to support 3.3V, 5V, 8V, 9.6V, and 12V bus voltage point-of-load applications and it offers up to 6A of output current in a
