NE12S0A0V10 - DC/DC Power Modul

Delta Electronics

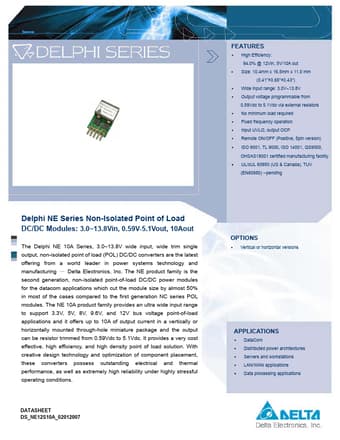

NE12S0A0V10 Datasheet Preview — Preview of NE12S0A0V10 PDF

Datasheet Details

Part number	NE12S0A0V10
Manufacturer	Delta Electronics
File Size	561.86 KB
Description	DC/DC Power Modul
Datasheet	NE12S0A0V10_DeltaElectronics.pdf

NE12S0A0V10 Product details

Description

Enable (On/Off) The ENABLE (on/off) input allows external circuitry to put the NE converter into a low power dissipation (sleep) mode.Positive ENABLE is available as standard.With the active high function, the output is guaranteed to turn on if the ENABLE pin is driven above 0.8V.The output will turn off if the ENABLE pin voltage is pulled below 0.3V.Undervoltage Lockout The ENABLE pin is also used as input UVLO function.Leaving the enable floating, the module will turn on if the input vo

Features

High Efficiency: 94.0% @ 12Vin, 5V/10A out Size: 10.4mm x 16.5mm x 11.0 mm (0.41”×0.65”×0.43”) Wide input range: 3.0V~13.8V Output voltage programmable from 0.59Vdc to 5.1Vdc via external resistors No minimum load required Fixed frequency operation Input UVLO, output OCP Remote ON/OFF (Positive, 5pin version) ISO 9001, TL 9000, ISO 14001, QS9000, OHSAS18001 certified manufacturing facility UL/cUL 60950 (US & Canada), TUV (EN60950) --pending Delphi NE Series Non-Isolated Point of Load www. DataSh.
