Description
Over-Current Protection
The modules include an internal output over-current protection circuit, which will endure current limiting for an unlimited duration during output overload.If the output current exceeds the OCP set point, the modules will automatically shut down (hiccup mode).The modules will try to restart after shutdown.If the overload condition still exists, the module will shut down again.This restart trial will continue until the overload condition is corrected.Layout and EMC
Features
- High Efficiency: 95.5% @9.6V/31A Standard footprint: 57.9 x 36.8 x 12.7mm (2.28”x1.45”x0.5”) Industry standard pin out Fully protected:OTP, OCP, Input OVP, UVLO 2250V isolation Basic insulation No minimum load required Current sharing ISO 9001, TL 9000, ISO 14001, QS 9000, OHSAS 18001 certified manufacturing facility UL/cUL 60950 (US & Canada), and TUV (EN60950) Certified CE mark meets 73/23/EEC and +3/68/EEC directives

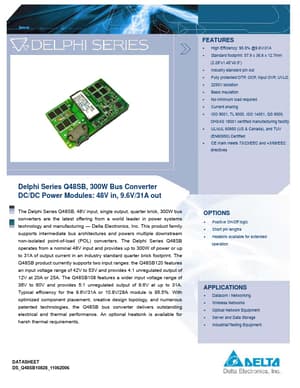

Delphi Series Q48SB, 300W Bus Converter DC/DC Power Modules: 48V in, 9.6V/3.
Q48SB10828NRFA_DeltaElectronics.pdf
