Q48SL1R535 Datasheet - Delta Electronics

Q48SL1R535, DC/DC Power Modules

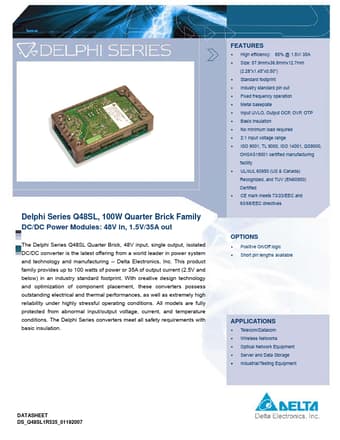

datasheet Preview Page 1 from Datasheet4u.com

Q48SL1R535_DeltaElectronics.pdf

Q48SL1R535 Datasheet Preview — Preview of Q48SL1R535 PDF

Datasheet Details

Part number:

Q48SL1R535

Manufacturer:

Delta Electronics

File Size:

606.54 KB

Description:

DC/DC Power Modules

Features

* High efficiency: 85% @ 1.5V/ 35A Size: 57.9mmx36.8mmx12.7mm (2.28”x1.45”x0.50”) Standard footprint Industry standard pin out Fixed frequency operation Metal baseplate Input UVLO, Output OCP, OVP, OTP Basic insulation No minimum load required 2:1 Input voltage range ISO 9001, TL 9000, ISO 14001, QS90

Applications

* Telecom/Datacom Wireless Networks Optical Network Equipment Server and Data Storage Industrial/Testing Equipment DATASHEET DS_Q48SL1R535_01192007 TECHNICAL SPECIFICATIONS (TA=25°C, airflow rate=300 LFM, Vin=48Vdc, nominal Vout unless otherwise noted. ) PARAMETER ABSOLUTE MAXIMUM RATINGS Input Volt
