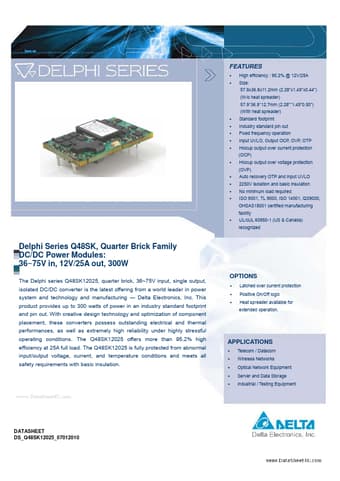

Q48SK - Quarter Brick Family DC/DC Power Modules

Delta Electronics

Datasheet Details

Part number	Q48SK
Manufacturer	Delta Electronics
File Size	420.66 KB
Description	Quarter Brick Family DC/DC Power Modules
Datasheet	Q48SK_DeltaElectronics.pdf

High efficiency : 95.2% @ 12V/25A Size: 57.9x36.8x11.2mm (2.28”x1.45”x0.44”) (W/o heat spreader) 57.9.
36.8.
12.7mm (2.28”.
1.45”0.50”) (With heat spreader).
Standard footprint Industry standard pin out Fixed frequency operation Input UVLO, Output OCP, OVP, OTP Hiccup output over current protection (OCP) Hiccup output over voltage protection (OVP) Auto recovery OTP and input UVLO 2250V isolation and basic insulation.
