DPS128M8xxx, DPS128M8_Dense 128kx8 High Speed CMOS SRAM

DPS128M8xxx Description

1 Megabit High Speed CMOS SRAM DPS128M8CnY/BnY, DPS128X8CA3/BA3 .
The DPS128M8CnY/BnY, DPS128X8CA3/BA3 High Speed SRAM devices are a revolutionary new memory subsystem using Dense-Pac Microsystems’ ceramic Stackable.

DPS128M8xxx Features

* Organization Available: 128Kx8 Access Times: 20
* , 25, 30, 35, 45ns Fully Static Operation - No clock or refresh required Single +5V Power Supply, ±10% Tolerance TTL Compatible Common Data Inputs and Outputs Low Data

DPS128M8xxx Applications

* The DPS128M8BnY/DPS128X8BA3 has one active low Chip Enable (CE) while the DPS128M8CnY/DPS128X8CA3 has an active low Chip Enable (CE) and an active high Select Line (SEL). By using SLCCs, the ‘’Stack’’ family of modules offer a higher board density of memory than available with conventional through-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DPS128M8xxx, DPS128M8_Dense. Please refer to the document for exact specifications by model.

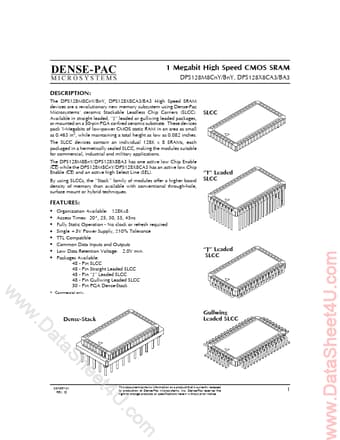

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DPS128M8xxx, DPS128M8_Dense
Manufacturer
Dense-Pac Microsystems
File Size
609.99 KB
Datasheet
DPS128M8_Dense-PacMicrosystems.pdf
Description
128kx8 High Speed CMOS SRAM
Note
This datasheet PDF includes multiple part numbers: DPS128M8xxx, DPS128M8_Dense.
Please refer to the document for exact specifications by model.
