DPS128C32BV3, DPS128C32BV3_Dense 512kx8 High Speed CMOS SRAM

DPS128C32BV3 Description

4 Megabit High Speed CMOS SRAM DPS128C32BV3 .
The DPS128C32BV3 ‘’VERSA-STACK’’ module is a revolutionary new high speed memory subsystem using Dense-Pac Microsystems’ ceramic Stackable Leadless C.

DPS128C32BV3 Features

* Organizations Available: 128K x 32, 256K x 16, or 512K x 8
* Access Times: 20, 25, 30, 35, 45ns
* Fully Static Operation - No clock or refresh required
* Single +5V Power Supply, ±10% Tolerance
* TTL Compatible
* Common Data Inputs and Outputs

DPS128C32BV3 Applications

* By using SLCCs, the ‘’Versa-Stack’’ family of modules offers a higher board density of memory than available with conventional through-hole, surface mount, module, or hybrid techniques. w w w PIN-OUT DIAGRAM
* Commercial only. . D at PIN NAMES A0 - A16 I/O0 - I/O31 CE0 - CE3 WE0 - WE3 O

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DPS128C32BV3, DPS128C32BV3_Dense. Please refer to the document for exact specifications by model.

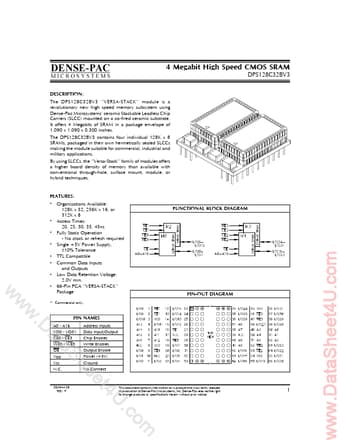

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DPS128C32BV3, DPS128C32BV3_Dense
Manufacturer
Dense-Pac Microsystems
File Size
512.94 KB
Datasheet
DPS128C32BV3_Dense-PacMicrosystems.pdf
Description
512kx8 High Speed CMOS SRAM
Note
This datasheet PDF includes multiple part numbers: DPS128C32BV3, DPS128C32BV3_Dense.
Please refer to the document for exact specifications by model.
