DA9061 - Entry level PMIC

Name: DA9061
SKU: DA9061-1074946

Dialog Semiconductor

📥 Download Datasheet

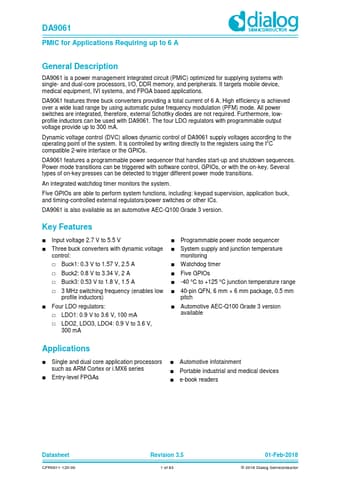

DA9061 Datasheet Preview — Preview of DA9061 PDF

Datasheet Details

Part number	DA9061
Manufacturer	Dialog Semiconductor
File Size	1.28 MB
Description	Entry level PMIC
Datasheet	DA9061-DialogSemiconductor.pdf

DA9061 Product details

Description

DA9061 is a power management integrated circuit (PMIC) optimised for supplying systems with single- and dual-core processors, I/O, DDR memory, and peripherals.

Features

three buck converters providing a total current of 6 A. High efficiency is achieved over a wide load range by using automatic Pulse Frequency Modulation (PFM) mode. All power switches are integrated, therefore, external Schottky diodes are not required. Furthermore, lowprofile inductors can be used with DA9061. The four LDO regulators with programmable output voltage provide up to 300 mA. Dynamic voltage control (DVC) allows dynamic control of DA9061 supply voltages according to the operating po.
