DA9213-A Datasheet, Converter, Dialog Semiconductor

DA9213-A Features

  • Converter
  • 2.8 V to 5.5 V input voltage
  • 1x 20 A DA9213-A
  • 2x 10 A DA9214-A
  • 3MHz nominal switching frequency (allows use of low profile [1mm] inductors)

PDF File Details

Part number:

DA9213-A

Manufacturer:

Dialog Semiconductor

File Size:

1.26MB

Download:

📄 Datasheet

Description:

Auto grade multi-phase 5a/phase buck converter. DA9213-A and DA9214-A are PMICs optimized for the supply of CPUs, GPUs, and DDR memory rails in automotive in-vehicle infotainment sy

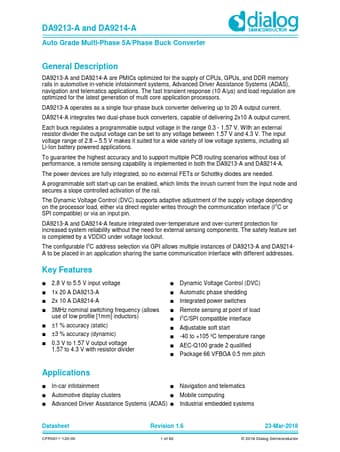

Datasheet Preview: DA9213-A 📥 Download PDF (1.26MB)
Page 2 of DA9213-A Page 3 of DA9213-A

DA9213-A Application

  • Applications The fast transient response (10 A/µs) and load regulation are optimized for the latest generation of multi core application processors
