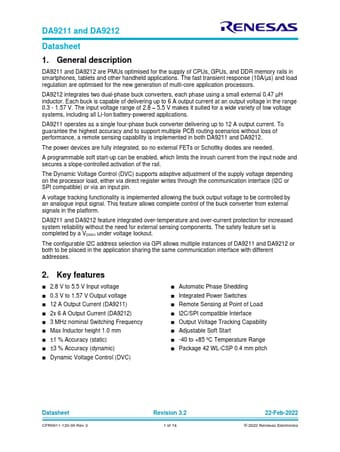

📥 Download Datasheet  Datasheet Preview Page 1

Description

DA9211 and DA9212 Datasheet 1.General .
DA9211 and DA9212 are PMUs optimised for the supply of CPUs, GPUs, and DDR memory rails in smartphones, tablets and other handheld applications.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DA9212, DA9211. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
DA9212, DA9211
Manufacturer
Renesas ↗
File Size
2.76 MB
Datasheet
DA9211-Renesas.pdf
Description
PMU
Note
This datasheet PDF includes multiple part numbers: DA9212, DA9211.
Please refer to the document for exact specifications by model.

Features

* 2.8 V to 5.5 V Input voltage
* 0.3 V to 1.57 V Output voltage
* 12 A Output Current (DA9211)
* 2x 6 A Output Current (DA9212)
* 3 MHz nominal Switching Frequency
* Max Inductor height 1.0 mm
* ±1 % Accuracy (static)
* ±3 % Accuracy (dynamic)
* Dynamic Voltage Co

Applications

* The fast transient response (10A/µs) and load regulation are optimised for the new generation of multi-core application processors. DA9212 integrates two dual-phase buck converters, each phase using a small external 0.47 µH inductor. Each buck is capable of delivering up to 6 A output current at an
