SLG55220-120010, SLG55221-120010 - High Voltage Gate Driver

Dialog Semiconductor

The SLG55220-120010 by Dialog Semiconductor is a High Voltage Gate Driver. Below is the official datasheet preview.

📥 Download Datasheet

SLG55220-120010 High Voltage Gate Driver by Dialog Semiconductor - Datasheet Preview — Official preview page of the SLG55220-120010 High Voltage Gate Driver datasheet (Dialog Semiconductor).

Datasheet Details

Part number	SLG55220-120010, SLG55221-120010
Manufacturer	Dialog Semiconductor
File Size	234.85 KB
Description	High Voltage Gate Driver
Datasheet	SLG55221-120010-DialogSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: SLG55220-120010, SLG55221-120010. Please refer to the document for exact specifications by model.

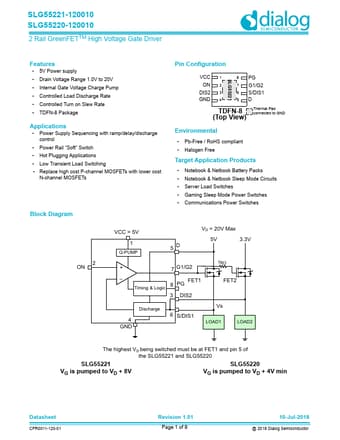

Additional preview pages of the SLG55220-120010 datasheet.

SLG55220-120010 Product details

Features

5V Power supply.
Drain Voltage Range 1.0V to 20V.
Internal Gate Voltage Charge Pump.
Controlled Load Discharge Rate.
Controlled Turn on Slew Rate.
TDFN-8 Package.
