- Part number
- SLG55021-200010V
- Manufacturer
- Silego
- File Size
- 104.72 KB
- Datasheet
- SLG55021-200010V-Silego.pdf
- Description
- High Voltage Gate Driver

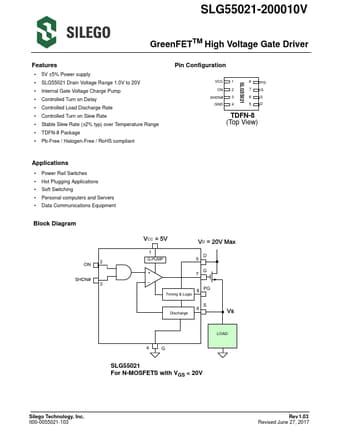

SLG55021-200010V Description
SLG55021-200010V GreenFETTM High Voltage Gate Driver .
Pin Name VCC ON
SHDN# GND D S G
PG
Overview
Pin Number 1 2 3 4 5 6 7
8
Type Power Input Input GND Input Input Outpu.
SLG55021-200010V Features
* 5V ±5% Power supply
* SLG55021 Drain Voltage Range 1.0V to 20V
* Internal Gate Voltage Charge Pump
* Controlled Turn on Delay
* Controlled Load Discharge Rate
* Controlled Turn on Slew Rate
* Stable Slew Rate (±2% typ) over Temperature Range
SLG55021-200010V Applications
* Power Rail Switches
* Hot Plugging Applications
* Soft Switching
* Personal computers and Servers
* Data Communications Equipment
Block Diagram
ON 2 SHDN#
3
CC
1
Q-PUMP
D
5D
+
G 7
_
8 PG
Timing & Logic
Discharge
6S
4G
SLG55021 For N-MOSFETS with VGS
