SLG505YC264C - Clock Synthesizer

Product Overview

Silego

Datasheet Details

Part number	SLG505YC264C
Manufacturer	Silego
File Size	217.45 KB
Description	Clock Synthesizer
Datasheet	SLG505YC264C Datasheet
Additional preview pages of the SLG505YC264C datasheet.

Product details

Description

Pin # 1 2 3 4 Name PCI_0/CLKREQ_A# VDD_PCI PCI_1/CLKREQ_B# TME/PCI_2 Type I/O, SE PWR I/O, SE I/O, SE Description Configurable PCI clock output or CLKREQ input.

Features

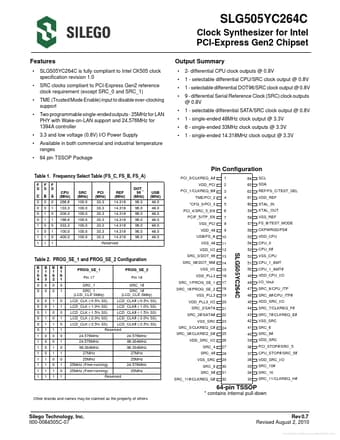

SLG505YC264C is fully compliant to Intel CK505 clock specification revision 1.0 SRC clocks compliant to PCI-Express Gen2 reference clock requirement (except SRC_0 and SRC_1) TME (Trusted Mode Enable) input to disable over-clocking support Two programmable single-ended outputs - 25MHz for LAN PHY with Wake-on-LAN support and 24.576MHz for 1394A controller 3.3 and low voltage (0.8V) I/O Power Supply Available in both commercial and industrial temperature ran.
