SLG55220-120010, SLG55221-120010 Datasheet - Renesas

SLG55220-120010 Dual Rail High Voltage Gate Driver

Pin # Pin Name Type Pin Description VCC 1 Power Supply Voltage 2 ON Input CMOS Logic Level. See SLG55251 for Control Input ON# instead of ON. 3 DIS2 Output Discharge Connection for Load2 4 GND GND Ground 5 D Input FET Drain Connection (Connect to FET with highest VD voltage) 6 S/D.

SLG55220-120010 Features

* 5 V Power supply

* Drain Voltage Range 1.0 V to 20 V

* Internal Gate Voltage Charge Pump

* Controlled Load Discharge Rate

* Controlled Turn on Slew Rate

* TDFN-8 Package Applications

* Power Supply Sequencing with ramp/delay/discharge control

SLG55221-120010-Renesas.pdf

This datasheet PDF includes multiple part numbers: SLG55220-120010, SLG55221-120010. Please refer to the document for exact specifications by model.

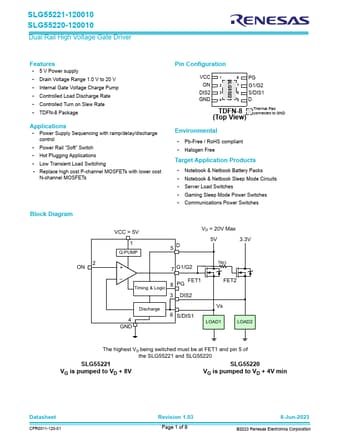

SLG55220-120010 Datasheet Preview Page 2 SLG55220-120010 Datasheet Preview Page 3

Datasheet Details

Part number:

SLG55220-120010, SLG55221-120010

Manufacturer:

Renesas ↗

File Size:

399.17 KB

Description:

Dual rail high voltage gate driver.

Note:

This datasheet PDF includes multiple part numbers: SLG55220-120010, SLG55221-120010.
Please refer to the document for exact specifications by model.
