SLG55570A Description

SLG55570A USB Host Charger Identification General .
The SLG55570A is a USB host charger (dedicated charger) identification circuit.

SLG55570A Features

* Low Supply Current
* Automatic Current-Limit Switch Control
* Automatic USB Charger Identification Circuit
* Apple iPad
* @ 2.4 A charging current support
* Chinese Telecom Standard YD/T 1591-2009 specification support
* Samsung Galaxy Tab

SLG55570A Applications

* Power bank
* Car charger
* USB universal wall charger Pin Configuration - SLG55570A CEN 1 DM 2 DP 3 GND 4 8 GND 7 NC 6 NC 5 VDD TDFN-8 Thermal Pad connected to GND (Top View)
* Apple iPhone, iPad and iPod are trademarks of Apple Inc. , registered in the U. S. and o

📥 Download Datasheet

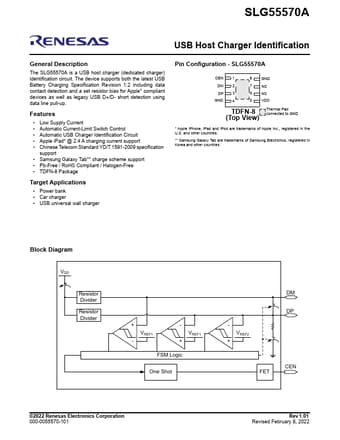

SLG55570A Datasheet Preview — Preview of SLG55570A PDF

Datasheet Details

Part number: SLG55570A
Manufacturer: Renesas ↗
File Size: 280.44 KB
Datasheet: SLG55570A-Renesas.pdf
Description: USB Host Charger Identification
