SLG55596A

USB Host Charger Identification Analog Switches

SLG55596A Features

* High Speed USB Switching

* Low 4.0pF (typ) On Capacitance

* Low 4.0Ω (typ) On Resistance

* Low 0.5Ω (typ) On Resistance Flatness

* 4.5V to 5.5V Supply Range

* Low Supply Current

* Automatic Current-Limit Switch Control

* Automatic USB

SLG55596A General Description

The SLG55596A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. The device supports both the latest USB Battery Charging Specification Revision 1.2 including data contact detection and a set resistor bias for Apple
* complian.

SLG55596A Datasheet (108.15 KB)

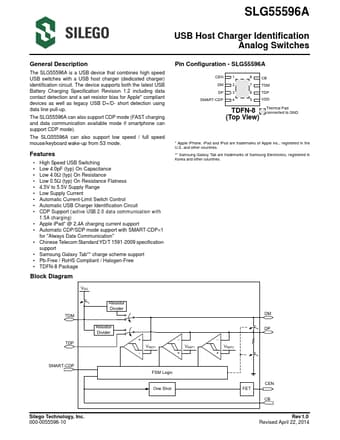

Preview of SLG55596A PDF

Datasheet Details

Part number:

SLG55596A

Manufacturer:

Silego

File Size:

108.15 KB

Description:

Usb host charger identification analog switches.
