SLG55596AV

USB Host Charger Identification

SLG55596AV Features

* High Speed USB Switching

* Low 4.0 pF (typ) On Capacitance

* Low 4.0 Ω (typ) On Resistance

* Low 0.5 Ω (typ) On Resistance Flatness

* 4.5 V to 5.5 V Supply Range

* Low Supply Current

* Automatic Current-Limit Switch Control

* Automati

SLG55596AV General Description

The SLG55596AV is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. The device supports both the latest USB Battery Charging Specification Revision 1.2 including data contact detection and a set resistor bias for Apple
* complia.

SLG55596AV Datasheet (509.09 KB)

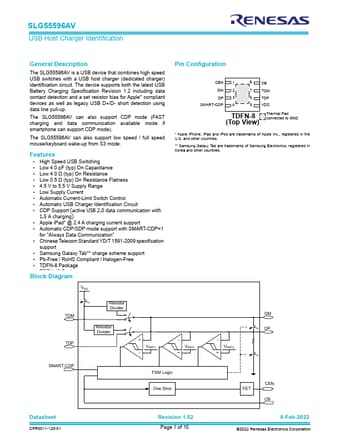

Preview of SLG55596AV PDF

Datasheet Details

Part number:

SLG55596AV

Manufacturer:

Renesas ↗

File Size:

509.09 KB

Description:

Usb host charger identification.
