SLG55021-200010 Datasheet - Dialog Semiconductor

SLG55021-200010, High Voltage Gate Driver

SLG55021-200010 GreenFETTM High Voltage Gate Driver .
Pin # VCC ON SHDN# GND D S G PG Pin Name 1 2 3 4 5 6 7 8 Ty.

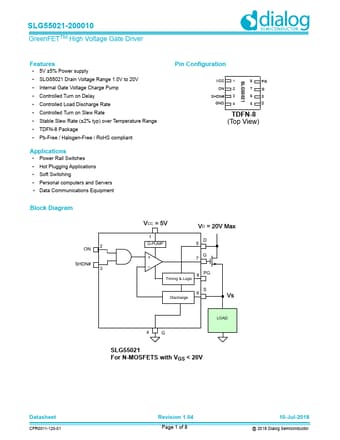

datasheet Preview Page 1 from Datasheet4u.com

SLG55021-200010-DialogSemiconductor.pdf

SLG55021-200010 Datasheet Preview — Preview of SLG55021-200010 PDF

Datasheet Details

Part number:

SLG55021-200010

Manufacturer:

Dialog Semiconductor

File Size:

212.64 KB

Description:

High Voltage Gate Driver

Features

* 5V ±5% Power supply
* SLG55021 Drain Voltage Range 1.0V to 20V
* Internal Gate Voltage Charge Pump
* Controlled Turn on Delay
* Controlled Load Discharge Rate
* Controlled Turn on Slew Rate
* Stable Slew Rate (±2% typ) over Temperature Range

Applications

* Power Rail Switches
* Hot Plugging Applications
* Soft Switching
* Personal computers and Servers
* Data Communications Equipment Pin Configuration VCC ON SHDN# GND 1 2 3 4 SLG55021 8 PG 7G 6S 5D TDFN-8 (Top View) Block Diagram ON 2 SHDN# 3 CC 1 Q-P
