SLG55221-120010 - Dual Rail High Voltage Gate Driver

Product Overview

Renesas

Datasheet Details

Part number	SLG55221-120010
Manufacturer	Renesas
File Size	399.17 KB
Description	Dual Rail High Voltage Gate Driver
Datasheet	SLG55221-120010 Datasheet

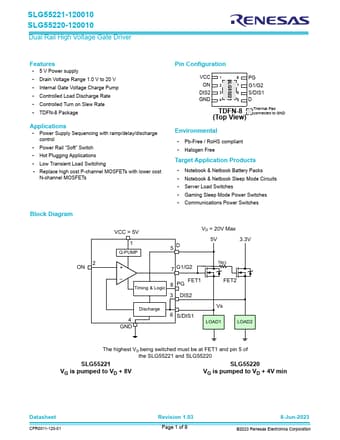

Additional preview pages of the SLG55221-120010 datasheet.

Product details

Description

Pin # Pin Name Type Pin Description VCC 1 Power Supply Voltage 2 ON Input CMOS Logic Level.See SLG55251 for Control Input ON# instead of ON.3 DIS2 Output Discharge Connection for Load2 4 GND GND Ground 5 D Input FET Drain Connection (Connect to FET with highest VD voltage) 6 S/DIS1 Input/Output Source Connection, Discharge Connection for Load1 7 G1/G2 Output FET Gate Drive for FET1, FET2 8 PG Output CMOS Power Good Signal Exposed Bottom Pad GND GND Ground Overvie

Features

5 V Power supply.
Drain Voltage Range 1.0 V to 20 V.
Internal Gate Voltage Charge Pump.
Controlled Load Discharge Rate.
Controlled Turn on Slew Rate.
TDFN-8 Package.
