DTL10N20 N-Channel MOSFET

Din-Tek

Description

DTL10N20/DTU10N20 www.din-tek.jp N-Channel 200 V (D-S) MOSFET PRODUCT SUMMARY VDS (V) 200 RDS(on) () Max.0.45 at VGS = 10 V 0.47 at VGS = 4.5 V .

📥 Download Datasheet

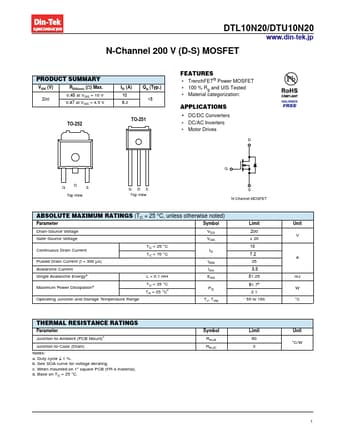

DTL10N20 Datasheet Preview — Preview of DTL10N20 PDF

Datasheet Specifications

Part number: DTL10N20
Manufacturer: Din-Tek
File Size: 456.81 KB
Datasheet: DTL10N20-DinTek.pdf
Description: N-Channel MOSFET

Features

* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

Applications

* DC/DC Converters
* DC/AC Inverters
* Motor Drives D G GD S Top View GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current
