DTL11N60SJ

N-Channel Super Junction Power MOSFET

Din-Tek

📥 Download PDF (435.22 KB)

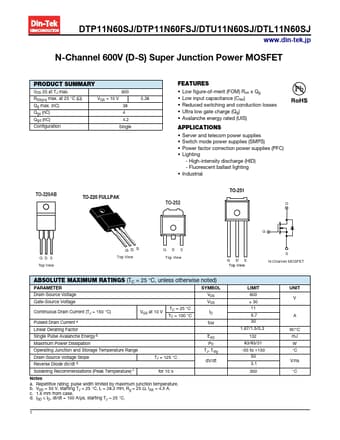

DTL11N60SJ Datasheet Preview Page 1 — Preview of DTL11N60SJ Datasheet

Datasheet Details

Part number:

DTL11N60SJ

Manufacturer:

Din-Tek

File Size:

435.22 KB

Download:

📄 Download DTL11N60SJ Datasheet PDF

Description:

N-channel super junction power mosfet.
DTP11N60SJ/DTP11N60FSJ/DTU11N60SJ/DTL11N60SJ www.din-tek.jp N-Channel 600V (D-S) Super Junction Powe.
r MOSFET PRODUCT SUMMARY VDS (V) at TJ max. 600 RDS(on) max. at 25 °C (Ω) Qg max. (nC) Qgs (nC) .

✔ DTL11N60SJ Features

Low figure-of-merit (FOM) Ron x Qg
Low input capacitance (Ciss)
Reduced switching and conduction losses
Ultra low gate charge (Qg)
Avalanche energy rated (UIS)

✔ DTL11N60SJ Application

Server and telecom power supplies
Switch mode power supplies (SMPS)
Power factor correction power supp
