Part number:
DTL23A
Manufacturer:
ETC
File Size:
653.69 KB
Description:

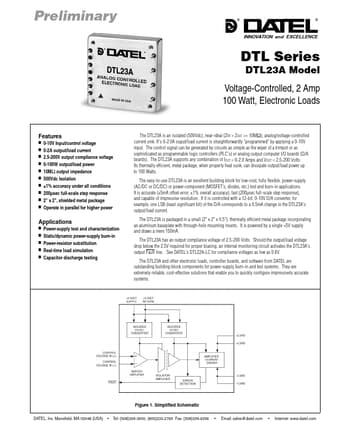

Voltage-controlled / 2 amp 100 watt / electronic loads.
* 0-10V Input/control voltage 0-2A output/load current 2.5-200V output compliance voltage 0-100W output/load power 10MΩ output impedance 500Vdc Isolation ±1% accuracy under all conditions 200µsec full-scale step response 2" x 2", shielded metal package Operate in parallel for higher power The DTL23A
DTL23A
ETC
653.69 KB
Voltage-controlled / 2 amp 100 watt / electronic loads.
