DTL2N70SJ, DTL2N70SJ-Din - N-Channel Super Junction Power MOSFET

Din-Tek

📥 Download Datasheet

DTL2N70SJ Datasheet Preview — This datasheet PDF includes multiple part numbers: DTL2N70SJ, DTL2N70SJ-Din. Please refer to the document for exact specifications by model.

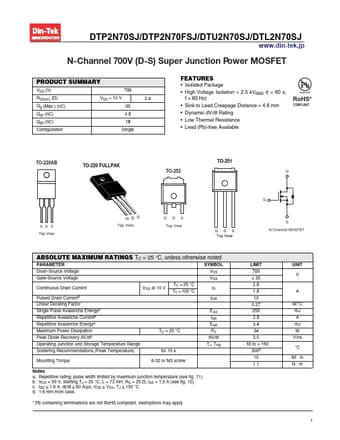

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DTL2N70SJ, DTL2N70SJ-Din
Manufacturer	Din-Tek
File Size	924.66 KB
Description	N-Channel Super Junction Power MOSFET
Datasheet	DTL2N70SJ-Din-Tek.pdf
Note	This datasheet PDF includes multiple part numbers: DTL2N70SJ, DTL2N70SJ-Din. Please refer to the document for exact specifications by model.

DTL2N70SJ Product details

Features

Isolated Package.
High Voltage Isolation = 2.5 kVRMS (t = 60 s; f = 60 Hz).
Sink to Lead Creepage Distance = 4.8 mm.
Dynamic dV/dt Rating.
Low Thermal Resistance.
Lead (Pb)-free Available Available RoHS.
