* TrenchFET® Power MOSFETS
* 175 °C Junction Temperature
* 100 % Rg Tested APPLICATIONS
* Primary Side Switch S1 S2 S3 G4 SO-8 Top View 8D 7D 6D 5D D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Sour
DTM5106
Din-Tek
510.01 KB
N-channel mosfet.

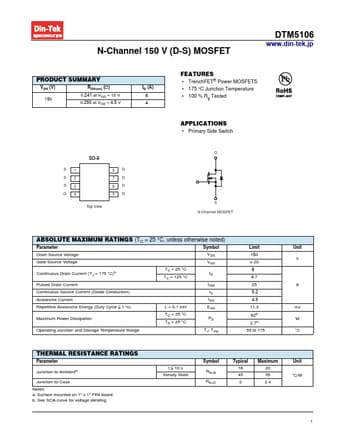

N-Channel 150 V (D-S) MOSFET
DTM5106
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) 150
RDS(on) () 0.241 at VGS = 10 V 0.250 at VGS = 4.5 V
ID (A) 6 4
.
