DTM6061

P-Channel MOSFET

DTM6061 Features

* TrenchFET® Power MOSFET

* 100 % UIS Tested APPLICATIONS

* Load Switch SO-8 S1 S2 S3 G4 8D 7D 6D 5D Top View S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC

DTM6061 Datasheet (530.11 KB)

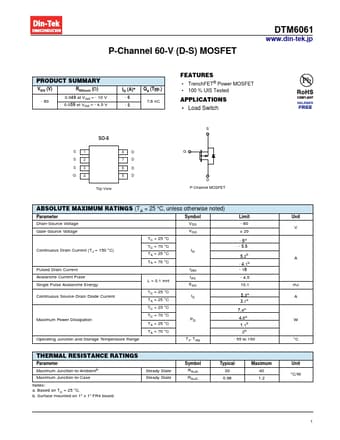

Preview of DTM6061 PDF

Datasheet Details

Part number:

DTM6061

Manufacturer:

Din-Tek

File Size:

530.11 KB

Description:

P-channel mosfet.
P-Channel 60-V (D-S) MOSFET DTM6061 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) () - 60 0.049 at VGS = - 10 V 0.059 at VGS = - 4.5 V ID (A)a.
