DTM6930

N-Channel MOSFET

DTM6930 Features

* TrenchFET® Power MOSFETS

* 175 °C Junction Temperature

* 100 % Rg Tested APPLICATIONS

* Load Switch

* LED Backlighting in LCD TVs G ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Volt

DTM6930 Datasheet (611.41 KB)

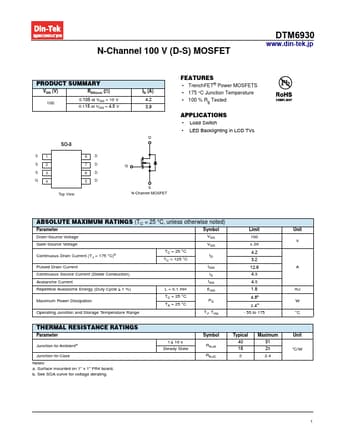

Preview of DTM6930 PDF

Datasheet Details

Part number:

DTM6930

Manufacturer:

Din-Tek

File Size:

611.41 KB

Description:

N-channel mosfet.
N-Channel 100 V (D-S) MOSFET DTM6930 www.din-tek.jp PRODUCT SUMMARY VDS (V) 100 RDS(on) () 0.105 at VGS = 10 V 0.115 at VGS = 4.5 V ID (A) 4.2 3.
