* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested
* Compliant to RoHS Directive 2002/95/EC APPLICATIONS
* DC/DC Converters
* Motor Control S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25
DTM6917
Din-Tek
456.59 KB
P-channel mosfet.

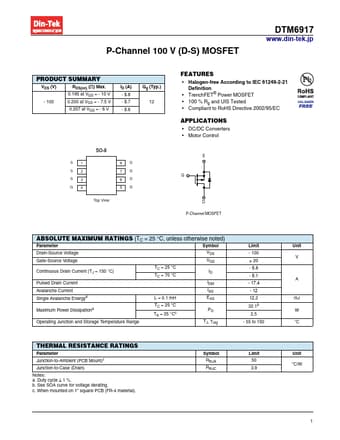

P-Channel 100 V (D-S) MOSFET
DTM6917
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) - 100
RDS(on) () Max. 0.195 at VGS = - 10 V 0.200 at VGS = - 7.5 V
0.
