* DT-Trench Power MOSFET
* 100 % Rg and UIS tested APPLICATIONS
* High power density DC/DC
* Synchronous rectification
* Embedded DC/DC D Top View Pin 1 S1 S2 S3 G4 8D 7D 6D 5D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise n
DTQ3200
Din-Tek
333.22 KB
N-channel mosfet.

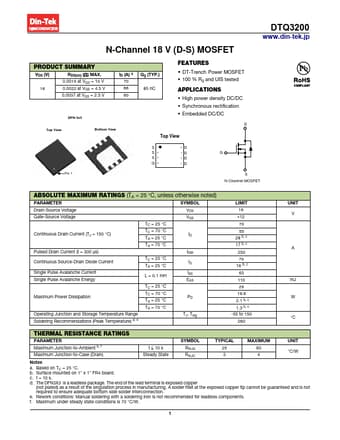

N-Channel 18 V (D-S) MOSFET
DTQ3200
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) 18
RDS(on) () MAX. 0.0019 at VGS = 10 V 0.0022 at VGS = 4.5 V 0.0037 a.
