DTQ3205, P-Channel MOSFET

P-Channel 20 V (D-S) MOSFET DTQ3205 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) () (Max.) - 20 0.005 at VGS = - 4.5 V 0.006 at VGS = - 2.5 .

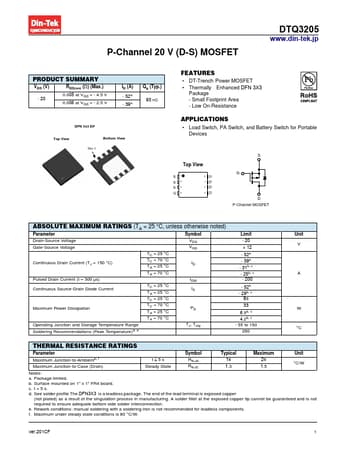

datasheet Preview Page 1 from Datasheet4u.com

DTQ3205-DinTek.pdf

DTQ3205 Datasheet Preview — Preview of DTQ3205 PDF

Datasheet Details

Part number:

DTQ3205

Manufacturer:

Din-Tek

File Size:

414.34 KB

Description:

P-Channel MOSFET

Features

* DT-Trench Power MOSFET

Applications

* Load Switch, PA Switch, and Battery Switch for Portable Devices Top View 1 8 2 7 3 6 4 5 S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage VDS - 20 V VGS ± 12 TC =
