* TrenchFET® Power MOSFET
* Thermally Enhanced DFN3X3 Package - Small Footprint Area - Low On-Resistance APPLICATIONS
* Load Switch, PA Switch, and Battery Switch for Portable Devices Top View 18 27 36 45 S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless

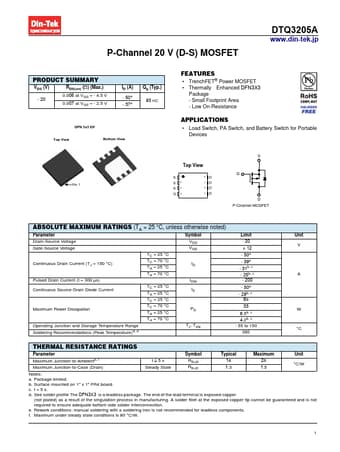

DTQ3205A Datasheet (531.68 KB)
DTQ3205A
Din-Tek
531.68 KB
P-channel mosfet.
P-Channel 20 V (D-S) MOSFET
DTQ3205A
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) - 20
RDS(on) () (Max.) 0.006 at VGS = - 4.5 V
0.007 at VGS = - 2.5 V
.
