DTQ3308, N-Channel MOSFET

N-Channel 30 V (D-S) MOSFET DTQ3308 www.din-tek.jp PRODUCT SUMMARY VDS (V) 30 RDS(on) () 0.0086 at VGS = 10 V 0.0107 at VGS = 4.5 V ID (A)a, e 4.

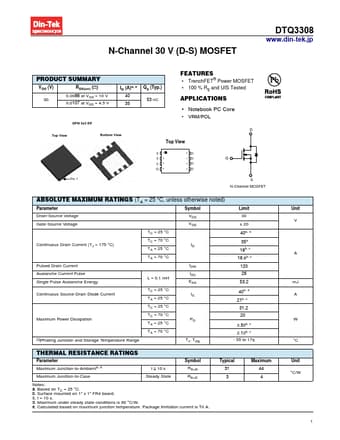

datasheet Preview Page 1 from Datasheet4u.com

DTQ3308-DinTek.pdf

DTQ3308 Datasheet Preview — Preview of DTQ3308 PDF

Datasheet Details

Part number:

DTQ3308

Manufacturer:

Din-Tek

File Size:

554.44 KB

Description:

N-Channel MOSFET

Features

* TrenchFET® Power MOSFET

Applications

* Notebook PC Core
* VRM/POL D Top View 18 27 36 45 G Pin 1 S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 175 °C) TC = 70 °C
