* DT-Trench Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS
* Notebook PC Core
* VRM/POL Top View DFN5X6 Bottom View Top View 1 8 2 7 3 6 4 5 D G PIN1 S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbo
DTQ6500SJ Datasheet (560.62 KB)
DTQ6500SJ
Din-Tek
560.62 KB
N-channel mosfet.

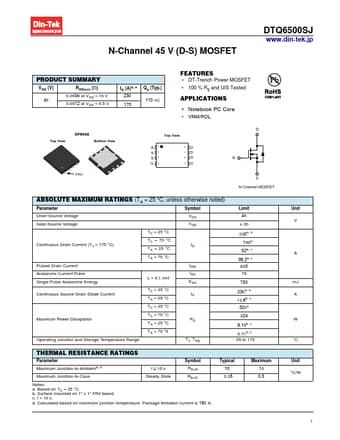

N-Channel 45 V (D-S) MOSFET
DTQ6500SJ
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) 45
RDS(on) () 0.0008 at VGS = 10 V 0.0012 at VGS = 4.5 V
ID (A)a, e.
