* Halogen-free According to IEC 61249-2-21 Available
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* 100 % UIS Tested APPLICATIONS
* Battery Switch
* DC/DC Converter D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Par
DTS6410
Din-Tek
433.52 KB
N-channel mosfet.

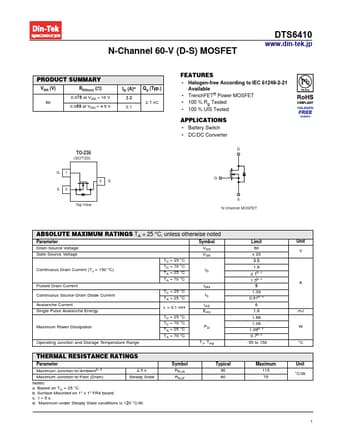

N-Channel 60-V (D-S) MOSFET
DTS6410
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.078 at VGS = 10 V 60
0.089 at VGS = 4.5 V
ID (A)a 3.0 2.
