DTU09N04, N-Channel MOSFET

N-Channel 40 V (D-S) MOSFET DTU09N04 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 40 0.027 at VGS = 10 V 0.07 at VGS = 4.5 V ID (A) 55d.

DTU09N04-DinTek.pdf

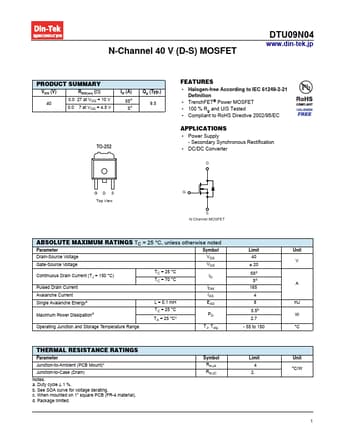

DTU09N04 Datasheet Preview — Preview of DTU09N04 PDF

Datasheet Details

Part number:

DTU09N04

Manufacturer:

Din-Tek

File Size:

445.29 KB

Description:

N-Channel MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

Applications

* Power Supply - Secondary Synchronous Rectification
* DC/DC Converter D GDS Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 150 °C) T
