DTU10N10, N-Channel MOSFET

N-Channel 100 V (D-S) MOSFET DTU10N10 www.din-tek.jp PRODUCT SUMMARY VDS (V) 100 RDS(on) () 0.145 at VGS = 10 V ID (A) 10 TO-252 .

DTU10N10-DinTek.pdf

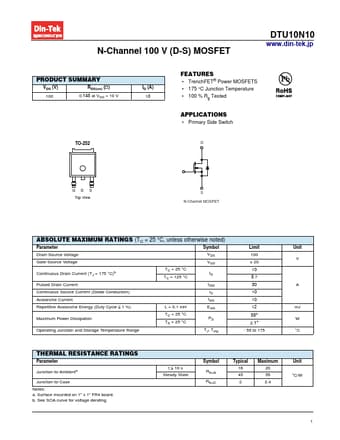

DTU10N10 Datasheet Preview — Preview of DTU10N10 PDF

Datasheet Details

Part number:

DTU10N10

Manufacturer:

Din-Tek

File Size:

435.34 KB

Description:

N-Channel MOSFET

Features

* TrenchFET® Power MOSFETS
* 175 °C Junction Temperature

Applications

* Primary Side Switch D GDS Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ = 175 °C)b TC = 25 °C TC = 125 °C ID Pulsed Drain Current IDM
