DTU11N60SJ

N-Channel Super Junction Power MOSFET

DTU11N60SJ Features

* Low figure-of-merit (FOM) Ron x Qg

* Low input capacitance (Ciss)

* Reduced switching and conduction losses

* Ultra low gate charge (Qg)

* Avalanche energy rated (UIS) APPLICATIONS

* Server and telecom power supplies

* Switch mode power suppl

DTU11N60SJ Datasheet (435.22 KB)

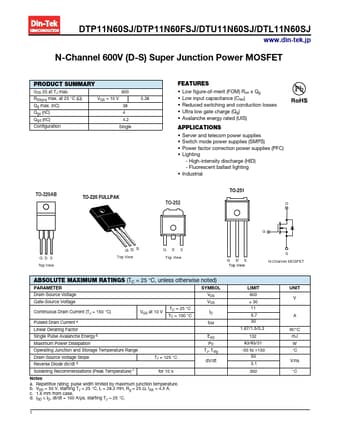

Preview of DTU11N60SJ PDF

Datasheet Details

Part number:

DTU11N60SJ

Manufacturer:

Din-Tek

File Size:

435.22 KB

Description:

N-channel super junction power mosfet.
DTP11N60SJ/DTP11N60FSJ/DTU11N60SJ/DTL11N60SJ www.din-tek.jp N-Channel 600V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max. 600.
