DTU10N60SJ, DTL10N60 - N-Channel Super Junction Power MOSFET

DTU10N60SJ Description

DTP10N60SJ/DTP10N60FSJ/DTU10N60SJ/DTL10N60SJ www.din-tek.jp N-Channel 600V (D-S) Super Junction Power MOSFET PRODUCT SUMMARY VDS (V) at TJ max.600.

DTU10N60SJ Features

* Low figure-of-merit (FOM) Ron x Qg
* Low input capacitance (Ciss)
* Reduced switching and conduction losses
* Ultra low gate charge (Qg)

DTU10N60SJ Applications

* Server and telecom power supplies
* Switch mode power supplies (SMPS)
* Power factor correction power supplies (PFC)
* Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
* Industrial TO-252 TO-251 D G GD S Top View GDS Top View G

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTU10N60SJ, DTL10N60. Please refer to the document for exact specifications by model.

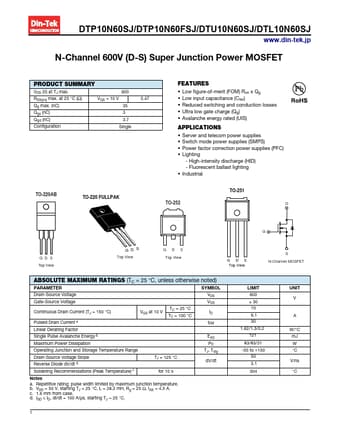

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTU10N60SJ, DTL10N60
Manufacturer
Din-Tek
File Size
442.32 KB
Datasheet
DTL10N60-SJ.pdf
Description
N-Channel Super Junction Power MOSFET
Note
This datasheet PDF includes multiple part numbers: DTU10N60SJ, DTL10N60.
Please refer to the document for exact specifications by model.
