* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested
* Material categorization: APPLICATIONS
* DC/DC Converters
* DC/AC Inverters
* Motor Drives D G GD S Top View GDS Top View S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherw
DTU10N20 Datasheet (456.81 KB)
DTU10N20
Din-Tek
456.81 KB
N-channel mosfet.

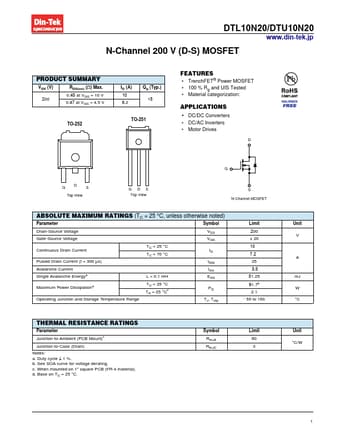

DTL10N20/DTU10N20
www.din-tek.jp
N-Channel 200 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V) 200
RDS(on) () Max. 0.45 at VGS = 10 V 0.47 at VGS = 4.5 V
.
