AP1513 - PWM CONTROL 2A STEP-DOWN CONVERTER

Product Overview

Diodes Incorporated

📥 Download Datasheet

AP1513 PWM CONTROL 2A STEP-DOWN CONVERTER by Diodes Incorporated - Datasheet Preview — Datasheet preview – AP1513

Datasheet Details

Part number	AP1513
Manufacturer	DIODES Incorporated
File Size	490.08 KB
Description	PWM CONTROL 2A STEP-DOWN CONVERTER
Datasheet	AP1513 Datasheet

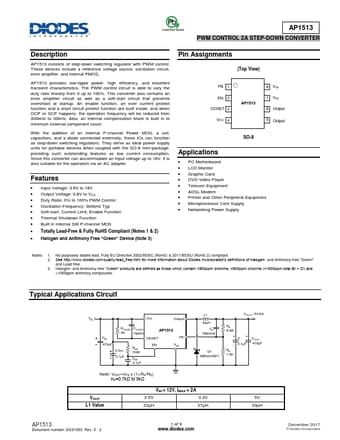

Additional preview pages of the AP1513 datasheet.

Product details

Description

AP1513 consists of step-down switching regulator with PWM control.

Features

as low current consumption. Since this converter can accommodate an input voltage up to 18V, it is also suitable for the operation via an AC adapter. Features.
Input Voltage: 3.6V to 18V.
Output Voltage: 0.8V to VCC.
Duty Ratio: 0% to 100% PWM Control.
Oscillation Frequency: 300kHz Typ.
Soft-start, Current Limit, Enable Function.
Thermal Shutdown Function.
Built-in Internal SW P-channel MOS.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halo.
