AP1515 - 1.5A PWM Buck DC/DC Converter

Product Overview

Anachip

Datasheet Details

Part number	AP1515
Manufacturer	Anachip
File Size	156.51 KB
Description	1.5A PWM Buck DC/DC Converter
Datasheet	AP1515 Datasheet

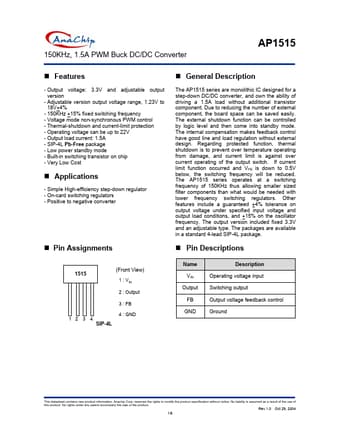

Additional preview pages of the AP1515 datasheet.

Product details

Description

The AP1515 series are monolithic IC designed for a step-down DC/DC converter, and own the ability of driving a 1.5A load without additional transistor component.

Features

s - Output voltage: 3.3V and adjustable output version - Adjustable version output voltage range, 1.23V to 18V+4% - 150KHz +15% fixed switching frequency - Voltage mode non-synchronous PWM control - Thermal-shutdown and current-limit protection - Operating voltage can be up to 22V - Output load current: 1.5A - SIP-4L Pb-Free package - Low power standby mode - Built-in switching transistor on chip - Very Low Cost.
