AP1504MT - N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP1504MT Description

Advanced Power Electronics Corp.AP1504MT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requi.
AP1504 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching p.

AP1504MT Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 150V 59mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol . Parameter Ratin

📥 Download Datasheet

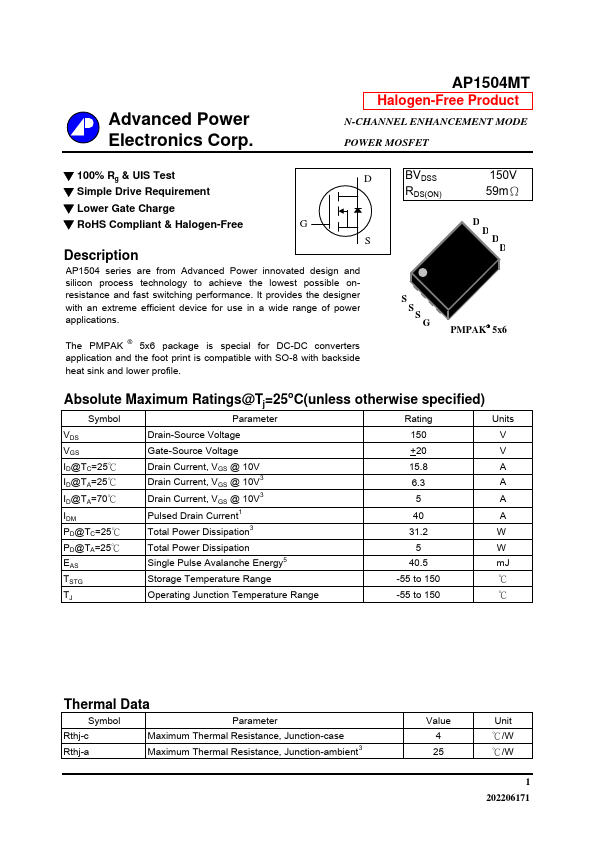

Preview of AP1504MT PDF

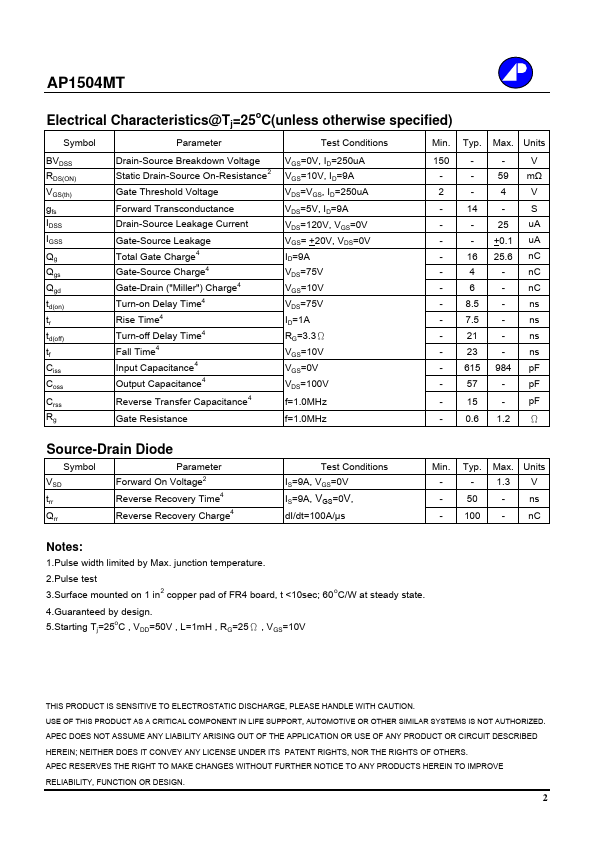

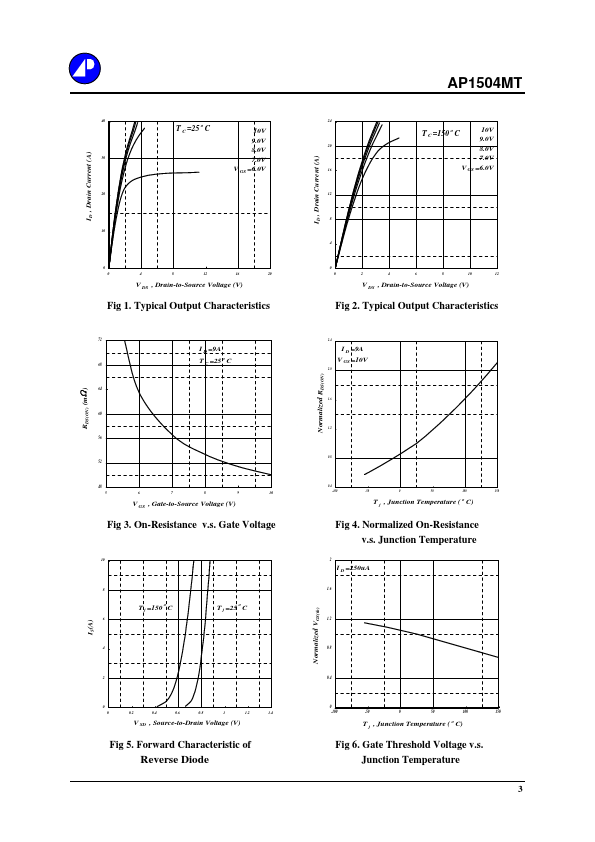

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP1504MT
Manufacturer
Advanced Power Electronics
File Size
102.68 KB
Datasheet
AP1504MT-AdvancedPowerElectronics.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET
