AP15N03GJ-HF, AP15N03GH-HF, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP15N03GH/J-HF Halogen-Free Product Advanced Power Electronics Corp.▼ Low Gate Charge ▼ Simple Drive Requirement ▼ Fast Switching ▼ RoHS Compliant G.
TO-252 package is widely preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC conv.

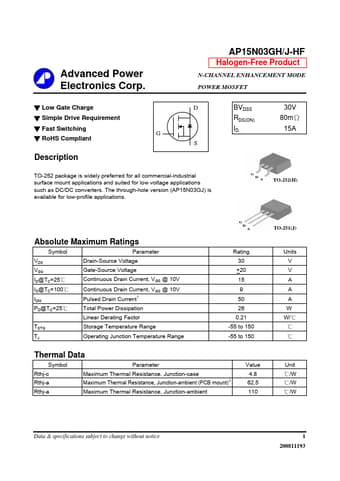

datasheet Preview Page 1 from Datasheet4u.com

AP15N03GH-HF-AdvancedPowerElectronics.pdf

AP15N03GJ-HF Datasheet Preview — This datasheet PDF includes multiple part numbers: AP15N03GJ-HF, AP15N03GH-HF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AP15N03GJ-HF, AP15N03GH-HF

Manufacturer:

Advanced Power Electronics

File Size:

210.45 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Note:

This datasheet PDF includes multiple part numbers: AP15N03GJ-HF, AP15N03GH-HF.
Please refer to the document for exact specifications by model.

Applications

* and suited for low voltage applications such as DC/DC converters. The through-hole version (AP15N03GJ) is available for low-profile applications. G D S TO-252(H) G D S TO-251(J) Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ TSTG TJ Parameter Drain-Source Voltage Ga
