AP1501 - 3A PWM Buck DC/DC Converter

Product Overview

Anachip

Datasheet Details

Part number	AP1501
Manufacturer	Anachip
File Size	179.49 KB
Description	3A PWM Buck DC/DC Converter
Datasheet	AP1501 Datasheet

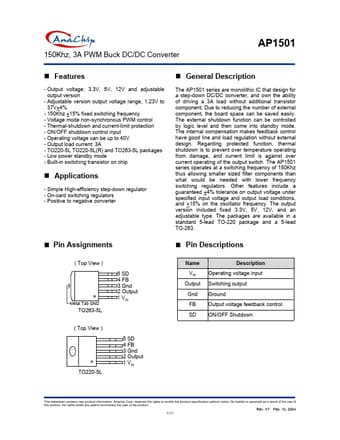

Additional preview pages of the AP1501 datasheet.

Product details

Description

The AP1501 series are monolithic IC that design for a step-down DC/DC converter, and own the ability of driving a 3A load without additional transistor component.

Features

- Output voltage: 3.3V, 5V, 12V and adjustable output version - Adjustable version output voltage range, 1.23V to 37V+4% - 150Khz +15% fixed switching frequency - Voltage mode non-synchronous PWM control - Thermal-shutdown and current-limit protection - ON/OFF shutdown control input - Operating voltage can be up to 40V - Output load current: 3A - TO220-5L TO220-5L(R) and TO263-5L packages - Low power standby mode - Built-in switching transistor on chip.
