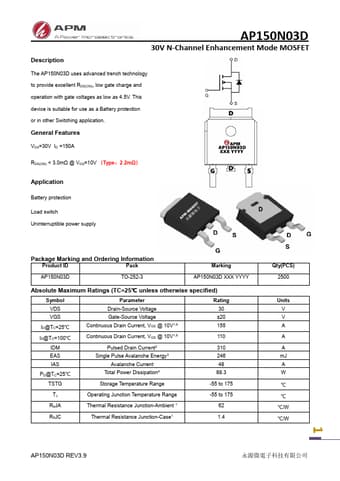

Part number: AP150N03D
Manufacturer: APM
File Size: 1.31MB
Download: 📄 Datasheet
Description: 30V N-Channel Enhancement Mode MOSFET
VDS=30V ID =150A
RDS(ON) < 3.0mΩ @ VGS=10V （Type：2.2mΩ）
Application
Battery protection Load switch Uninterruptible power supply
Package Marking and Ordering Informati.
, should be limited by total power dissipation.
2
AP150N03D REV3.9
AP150N03D
30V N-Channel Enhancement Mode MOSFET
.
AP150N03D
30V N-Channel Enhancement Mode MOSFET
The AP150N03D uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or .
