Part number: AP150N04D
Manufacturer: APM
File Size: 1.25MB
Download: 📄 Datasheet
Description: 40V N-Channel Enhancement Mode MOSFET
VDS = 40V ID =150 A
RDS(ON) < 2.4mΩ @ VGS=10V
Application
Battery protection
Load switch Uninterruptible power supply
Package Marking and Ordering Information
Produ.
, should be limited by total power dissipation.
2
AP150N04D RVE1.0

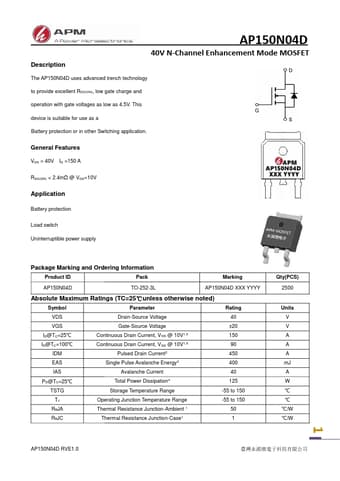

AP150N04D
40V N-Channel Enhancement Mode MOSFET
.
AP150N04D
40V N-Channel Enhancement Mode MOSFET
The AP150N04D uses advanced trench technology
to provide excellent RDS(ON), low gate charge and
operation with gate voltages as low as 4.5V. This
device is suitable for use as a
Battery protection.
